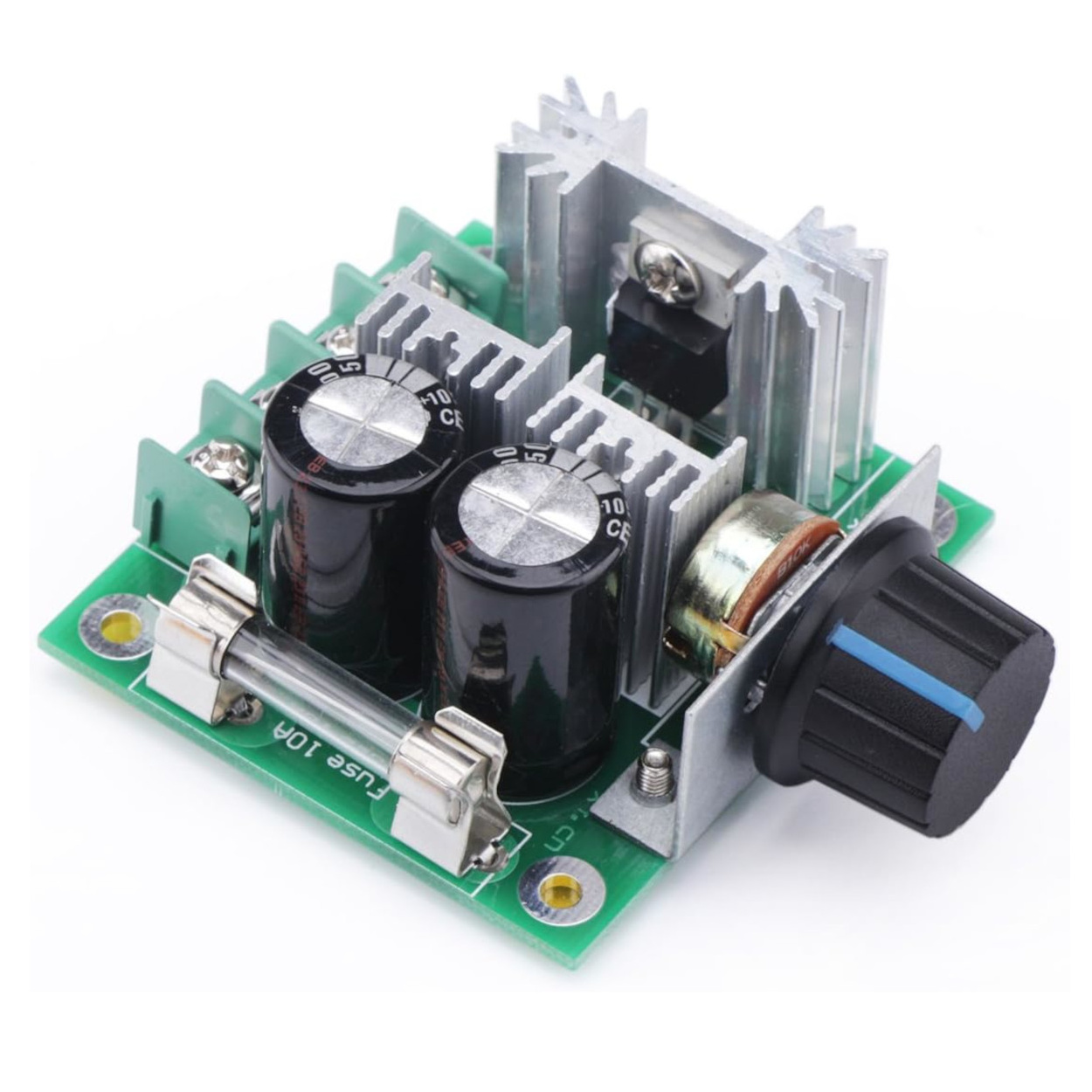

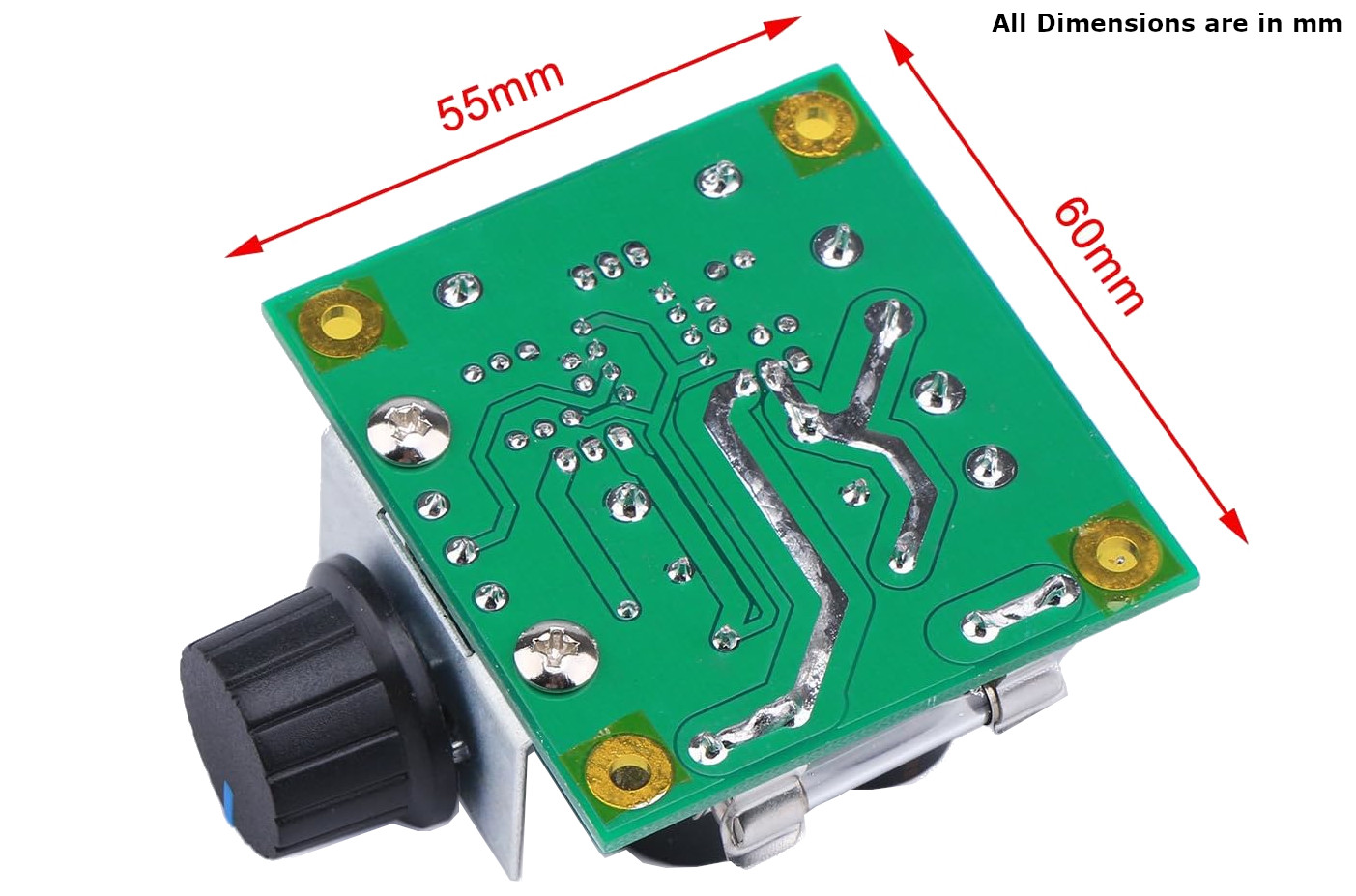

DC Motor PWM Speed Controller 400W 40V 10A Board Module

This High Power DC Motor Speed Controller lets you control the speed of a DC motor using a Pulse Width-Modulated (PWM) DC voltage with a Duty Cycle fully adjustable from 10%-100%. It can be used to drive all DC Brushed Motors that work between 12V-40V DC and consume upto 10A of current.

Applications:
• For Speed Control Of all Types of DC Brush Motors
• For Controlling Automotive Cooling Fan Speed, Auto Fan Speed, Windshield Wipers, Auto Air Conditioning.
• For Controlling Belt Speed, Pipeline Exhaust Fan Speed, Treadmill Speed, Multi-Speed Parallel Computer Fan, Electronic Fan Speed.

Specification:
• Input supply voltage:12V-40VDC
• The maximum output power: 400W
• The maximum continuous output current :10A
• Duty Cycle adjustable:10%-100%

Operating instruction:
• Connect your DC motor (or DC load) to the motor terminals as indicated on the wiring diagram.
• Connect a voltage of 10V-40V DC to the circuit making sure of the correct polarity of the connection. Note that the voltage applied to the motor will be supply voltage applied to the circuit. It is recommended to add an appropriately rated fuse inline with the positive supply in order to protect the circuit from any possible short circuits.
• You can now control the speed of the motor through potentiometer.

Package includes:
• 1 x 400W DC PWM Motor Speed Variable
